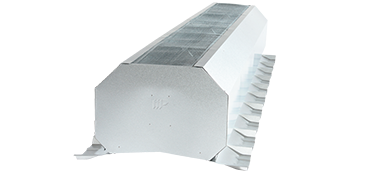

Continuous Ridge Vents
Metallic Products’ continuous metal building ridge vents create healthier, more comfortable indoor environments. These low-maintenance ventilation accessories encourage movement of fresh air through a structure while also providing an escape path for hot, stale air, smells, fumes and contaminants generated by manufacturing or production processes. They also aid in moisture control. With a wide range of available throat sizes, color and finish options, there’s a continuous ridge vent for every steel building.
SPECIFICATIONS
STANDARD SIZEs
9″ throat and 12″ throat available in 10′ sections. Low profile design can be used for a single unit or continuous run installation with no disassembly.
Other throat sizes available include 4″, 18″, 24″, 30″ and 48″ options. For custom lengths or throat sizes, please contact us.
INTEGRAL DAMPERS
Easy-moving damper open to any degree from fully open to completely closed.
DESIGN
Aerodynamically proportioned to exclude weather. Protects air passage and full outlet area.
BIRD SCREEN
Vents are fully protected by 4” x 4” bird screen mesh galvanized hardware cloth.
CONSTRUCTION
Durable 26-gauge exterior, combined with internal components of 24, 20 and 18-gauge die formed sheet metal and machined parts for a long service life.
Metallic Products also constructs welded, large throat vents available in multiple sizes. See page 3 of Continuous Ridge Vent spec sheet for more information.
FINISH
Galvalume finish is standard, but other colors — including Kynar® — are available upon request.
DRAINAGE AREA
Both wind bands feature a continuous slot on the bottom for easy drainage.
Continuous Ridge Vents
Metallic Products’ continuous metal building ridge vents create healthier, more comfortable indoor environments. These low-maintenance ventilation accessories encourage movement of fresh air through a structure while also providing an escape path for hot, stale air, smells, fumes and contaminants generated by manufacturing or production processes. They also aid in moisture control. With a wide range of available throat sizes, color and finish options, there’s a continuous ridge vent for every steel building.
