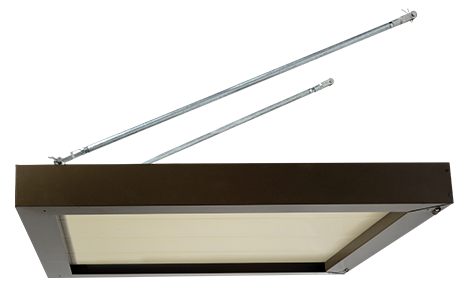

Door Canopies
Metallic Products’ door canopies offer unparalleled protection for people and property alike, all while adding to your metal building’s look. Their solid build and 16-gauge galvanized frame prime these metal building accessories to stand up to whatever Mother Nature has in store — including extreme snow and wind loads. Incorporate lighting to offer even better protection for your steel buildings, and complete your look with custom color and finish options.
View Spec Sheets
MORE INFORMATION
FULL DETAILS & SPECS
Load Specifications

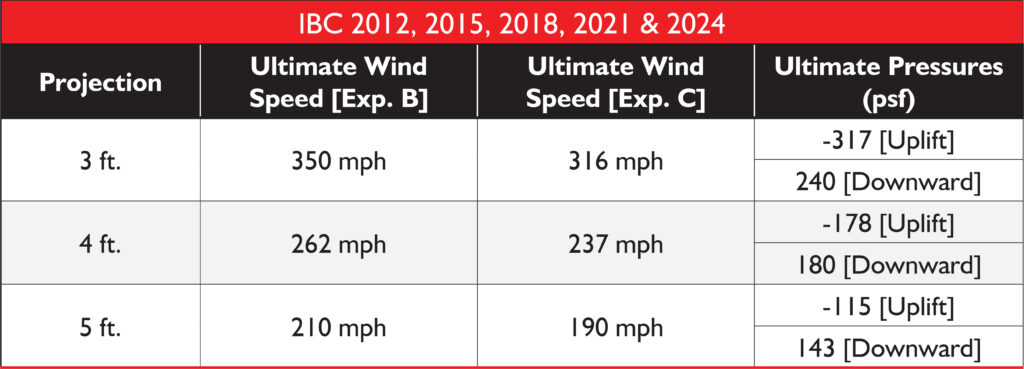

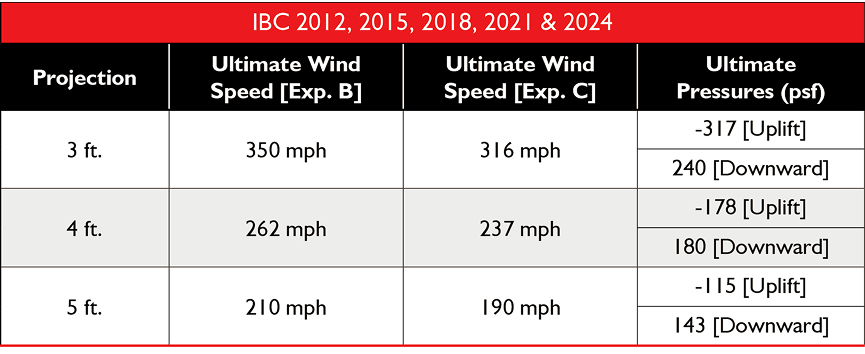

Wind loads shown are uniform loads on a 4′- 6″ wide canopy with 2 braces.
Wind loads calculated per ASCE 7-16 Section 30.11, using net pressure coefficients on attached canopies considering contributions from upper and lower surfaces.
- Topographic factor, Kzt = 1.0
- Wind directionality factor, Kd = 0.85
- Ground elevation factor, Ke = 1.0
- Net pressure coefficient, GCp = -1.4 for Uplift pressure & +0.9 for Downward pressure
- Velocity pressure coefficient, Kz = 0.85 for Exposure – B & 1.04 for Exposure – C
- Mean building eave height, he:
- Max 60′ above ground for Exposure – B
- Max 40’ above ground for Exposure – C

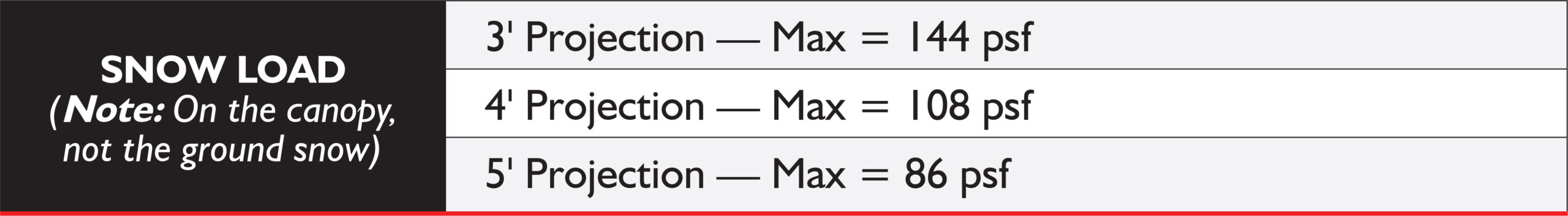

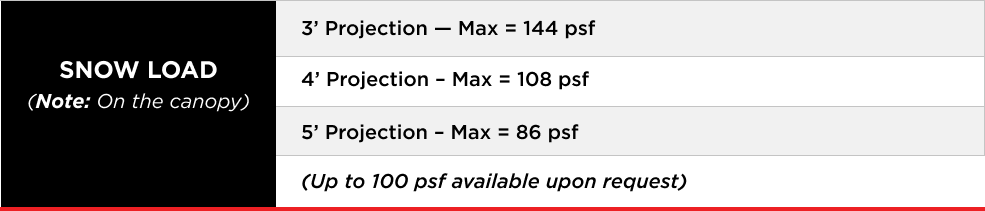

Snow loads shown are uniform loads on a 4′-6″ wide canopy with 2 braces. Snow loads shall be determined by engineer utilizing applicable codes and project-specific design criteria.
NOTE: Wider canopies, more stringent loading requirements and customer engineering analysis available.
CONSTRUCTION
- Economical and attractive overhead protection from the elements
- Specifically designed for high wind load and heavy snow load areas
- 5/8″ dia. rod end 4140 hot rolled annealed (HRA) [F.y = 125 ksi]
- 16-gauge telescoping support channels mount behind wall panel between girts, mounting clips and fasteners included
- 24-gauge flat soffit and integral gutter with rear-mounted drains
- 16-gauge galvanized internal frame for 3’ and 4’ projections, and 14-gauge galvanized internal frame for 5’ projection
- 3/4″ dia. galvanized pipe hangers with adjustable rod ends
- Additional information for lighted door canopy:
- Single door contains one LED light in the center of soffit panels, double door contains two LED lights 20” from the edge width
- Wet rated LED downlight provides uniform luminance (120V, 780 lumens, 4000K color temperature) from a low profile flat lens
- LED lifetime of 50,000 hours
- ENERGY STAR-certified luminaire contains no mercury or lead
- Precision molded lens features high transmission polymer with UV stabilized protecting film
- Fixture mounted in soffit of canopy and sealed to top-mounted junction box
- Electrical contractor must ensure of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local codes
Door Canopies
Metallic Products’ door canopies offer unparalleled protection for people and property alike, all while adding to your metal building’s look. Their solid build and 16-gauge galvanized frame prime these metal building accessories to stand up to whatever Mother Nature has in store — including extreme snow and wind loads. Incorporate lighting to offer even better protection for your steel buildings, and complete your look with custom color and finish options.
To access product pricing and submit a quote request, please login to an existing account or create a new one.
Choose one
Choose one
Choose one
Fascia Color (choose one)
Soffit Color (choose one)
Paint options are MBCI Signature 200 colors
Choose one
Choose one
*will incur additional costs reflected in final estimate from sales team
Choose one
